Bellow Mechanical Seal

Bellow Mechanical Seals are designed to eliminate O-rings to enhance compatibility and minimize potential leak paths. They are designed for higher flow rates and minimum clogging to provide the best performance. They are ideal for creating uniform outside wall to ensure smooth and uniform movement under hydraulic pressure. These Bellow Mechanical Seals are provided in various sizes and stroke lengths for meeting the demands of different sectors from gas, petrochemical, aerospace, oil, pharmaceutical, water to paper industries.
Product Image (GFE-RBS)

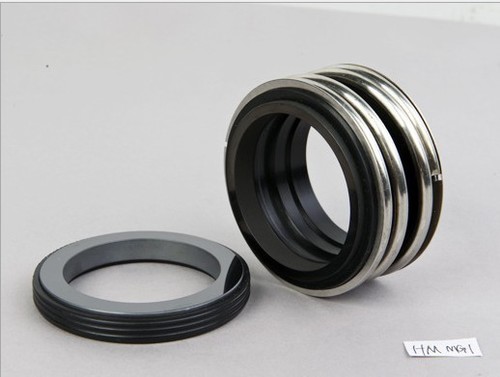

Rubber Bellow Mechanical Seal (Equivalent to Burgmann MG1, MG12, MG13 & Equivalent to John Crane 21, 2100, 502)

  • Application:Mass produced Hot & cold water pumps for non-critical applications, Sewage Application, Gear Pump, Vacuum Pump & Oil Compressor Etc.
  • Style:Bellow Seal
  • Size:up to 12 mm to 100 mm
  • Material:Rubber
  • Speed:up to 10 m/s m/s
  • Temperature:up to -20O C to +140O C Celsius (oC)
  • Pressure:up to 10 bars Bar
  • Delivery Time:05 Days
  • Supply Ability:3000 Per Month
Product Image (C20M & C20S)

Teflon Bellow Mechanical Seal

Price: Depend on Size INR/Set
  • Delivery Time:05 Days
  • Supply Ability:2000 Per Month
  • Size:up to 20 mm to 100 mm
  • Application:Corrosive liquids, Pharmaceuticals, Medical, Chemical, Acid & Allied Industries etc.
  • Style:Bellow Seal
  • Speed:up to 10 m/s m/s
  • Material:PTFE
  • Temperature:up to -20O C to +80O C Celsius (oC)
  • Pressure:up to 5 bars Bar
Product Image (C47)

Metal Bellow Mechanical Seal

  • Delivery Time:10 Days
  • Supply Ability:2000 Per Month
  • Material:Metal
  • Speed:up to 10 m/s m/s
  • Style:Bellow Seal
  • Application:Thermic Fluid, Fatty Acid, High Temperature, Hydrocarbons, Petroleum Refineries, Edible Oil refineries & Critical Services Etc.
  • Size:up to 25 mm to 150 mm
  • Pressure:up to 20 Bar Bar
  • Temperature:up to -20 C to +300 C Celsius (oC)
