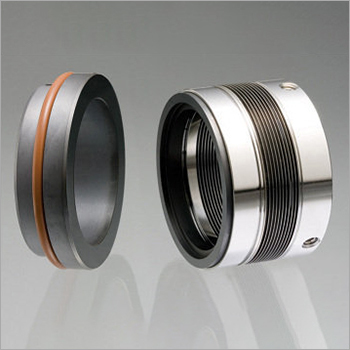

Metal Bellow Mechanical Seal Metal Bellow Mechanical Seal Metal Bellow Mechanical Seal
Metal Bellow Mechanical Seal Metal Bellow Mechanical Seal Metal Bellow Mechanical Seal

Metal Bellow Mechanical Seal

Product Details:

  • Application Thermic Fluid, Fatty Acid, High Temperature, Hydrocarbons, Petroleum Refineries, Edible Oil refineries & Critical Services Etc.
  • Style Bellow Seal
  • Material Metal
  • Temperature up to -20 C to +300 C Celsius (oC)
  • Pressure up to 20 Bar Bar
  • Speed up to 10 m/s m/s
  • Size up to 25 mm to 150 mm
  • Supply Ability : 2000 Milliliter Per Month
  • Click to view more
X

Price And Quantity

  • INR/Set
  • 01 Milliliter

Product Specifications

  • Thermic Fluid, Fatty Acid, High Temperature, Hydrocarbons, Petroleum Refineries, Edible Oil refineries & Critical Services Etc.
  • up to 25 mm to 150 mm
  • up to 20 Bar Bar
  • Metal
  • Bellow Seal
  • up to -20 C to +300 C Celsius (oC)
  • up to 10 m/s m/s

Trade Information

  • Mumbai
  • Telegraphic Transfer (T/T), Letter of Credit (L/C), Cheque, Cash on Delivery (COD), Cash Against Delivery (CAD)
  • 2000 Milliliter Per Month
  • 10 Days
  • Yes
  • If order is confirmed we will reimburse the sample cost
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • All India
  • ISO 9001 - 2015 Certified Company, MSME Certified, NSIC Certified

Product Description

This metal bellow mechanical seal areextremely useful in high temperature and other complicated services. Specialwelding process is used on rare materials to form highly accurate and precisebellow hence it's expensive and used in ultimate services. These mechanicalseals are non-pusher and balanced in nature. Bellow is having self cleaningaction and axial movement hence does not have dynamic Elastomer which overcomesseveral disadvantages of pusher seals. These are available in doubleconfiguration cartridge assembly too. It finds great usage in hydrocarbon, pulppaper, steel, mine & power industries. We have very long experience inreconditioning of metal bellow mechanical seals.

Features:



  • SingleActing
  • Rotatingspring
  • InternalMounted
  • Singlehelical Coil Spring
  • Independentof direction of rotation

Specification:

Application

Thermic Fluid, Fatty Acid, High Temperature, Hydrocarbons, Petroleum Refineries, Edible Oil refineries & Critical Services Etc.

Materials

Faces

Carbon / Silicon Carbide / Tungsten Carbide

Elastomers

Viton (FKM) / Graphite / Kalrez (FFKM)

Hardware

S. S. 316 / Hastelloy-B & C / Alloy-20 / Titanium

Bellow Material

AM-350 / Alloy 20 / Inconel 625 / Titanium

Operating Limits

Size

up to 25 mm to 150 mm

Pressure

up to 20 bar

Temperature

up to -20O C to +300O C

Speed

up to 10 m/s
