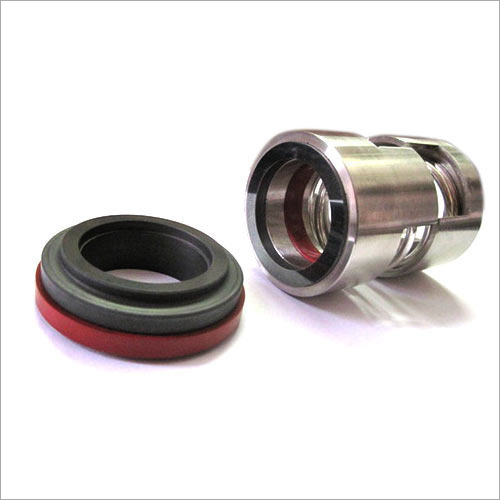

Star Type Mechanical Seal

Product Details:

Application Mud Slurry Pumps, Viscous Fluids, Sugar & Textile Industries Etc.
Style Other
Material Other
Temperature up to -200 C to +1000 C Celsius (oC)
Pressure up to 5 bars Bar
Speed up to 10 m/s m/s
Size 20 mm / 25 mm / 30 mm / 35 mm / 45 mm
Supply Ability : 3000 Millimeter Per Month
Share Your Product:

Get a Price/Quote

Request To Call Back Send Inquiry

Price And Quantity

Price Or Price Range INR/Set
Minimum Order Quantity 01 Millimeter

Product Specifications

Pressure up to 5 bars Bar
Style Other
Application Mud Slurry Pumps, Viscous Fluids, Sugar & Textile Industries Etc.
Material Other
Size 20 mm / 25 mm / 30 mm / 35 mm / 45 mm
Speed up to 10 m/s m/s
Temperature up to -200 C to +1000 C Celsius (oC)

Trade Information

FOB Port Mumbai
Supply Ability 3000 Millimeter Per Month
Delivery Time 07 Days
Sample Available Yes
Sample Policy If order is confirmed we will reimburse the sample cost
Main Export Market(s) Western Europe, Asia, Australia, North America, Eastern Europe, Middle East, Central America, South America, Africa
Main Domestic Market All India
Certifications ISO 9001 - 2015 Certified Company, MSME Certified, NSIC Certified

Product Description

Our organization offers exclusively designed range of Star type Single Spring Mechanical Seal to our esteemed customers. The product offered by us is widely appreciated for their single acting, unbalance,independent of direction of rotation, straight spring seal. Our range are widely used for circulation pumps for water and heating systems, Submerged Pump, Sewage Pump, Mud Slurry Pump, Sugar Industries and Specially Textile Industries.

Features:

Single Seal
Pusher Type
UN Balanced
Parallel Spring
Internal Mounted
Dependent on direction of rotation

Specification:

Application	Mud Slurry Pumps, Viscous Fluids, Sugar & Textile Industries Etc.
Materials	Faces	Carbon / Ceramic / Silicon Carbide / Tungsten Carbide
	Elastomers	Nitrile (NBR) / Viton (FKM) / EPDM
	Hardware	S. S. 304 / S. S. 316
Operating Limits	Size	25 mm / 30 mm / 35 mm / 45 mm
	Pressure	up to 5 bars
	Temperature	up to -20⁰ C to +100⁰ C
	Speed	up to 10 m/s
